Multi-cavity tooling, insert molding, and over-molding. From 50-ton to 1200-ton injection capacity for engineering plastics and consumer goods.
Get Instant Quote
From rapid prototype tooling to millions of cycles.

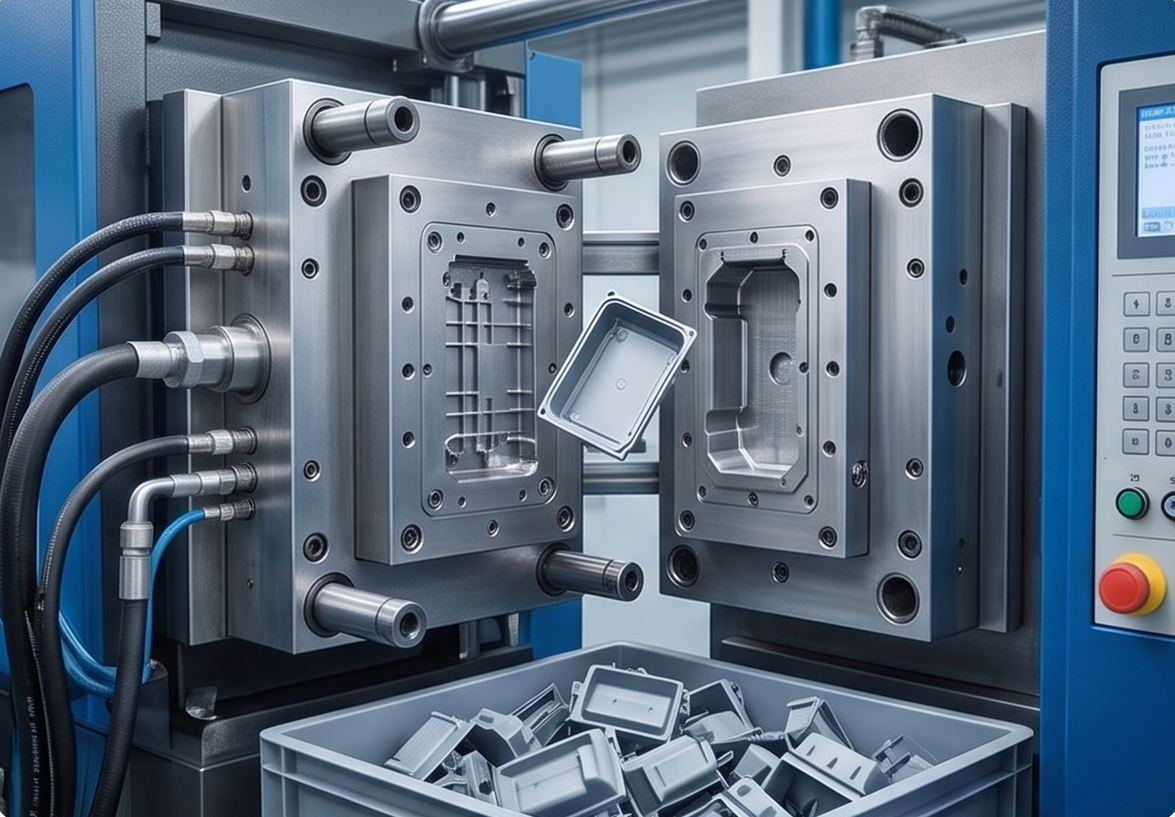

Standard single-shot molding using high-grade steel or aluminum tools for cost-effective mass production.
Typical Apps: Enclosures, Housings, Consumer Goods

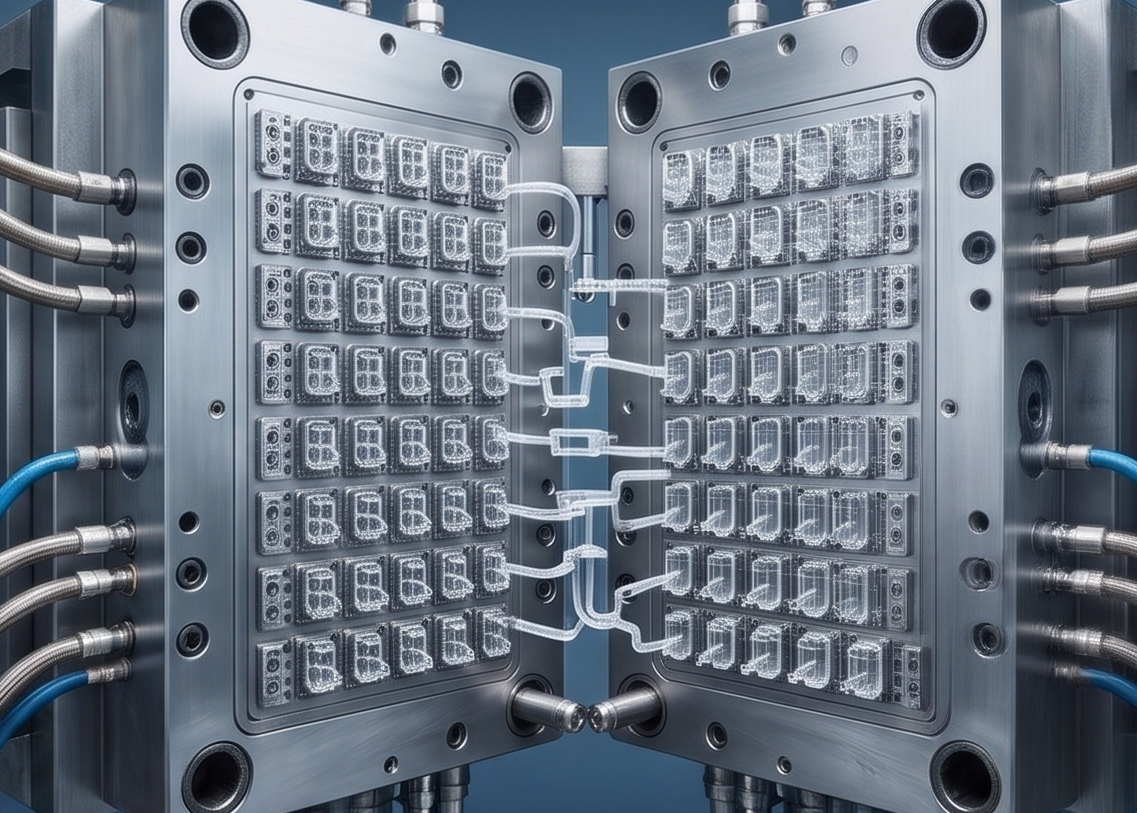

Designed for extreme high-volume scaling, dropping unit costs drastically while maintaining cycle speed.
Typical Apps: Medical Disposables, Fasteners

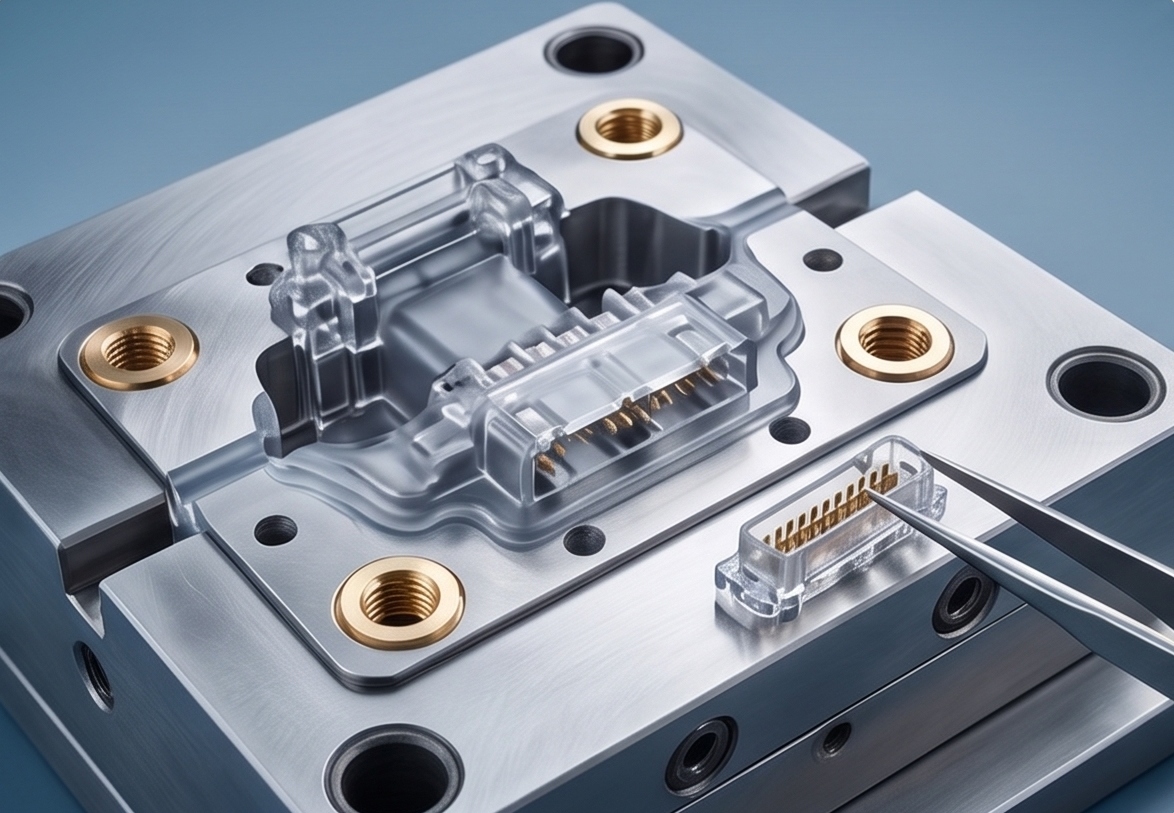

Molding plastic around pre-placed metal inserts (like threaded brass nuts) for robust mechanical assemblies.
Typical Apps: Electronic Connectors, Automotive Parts

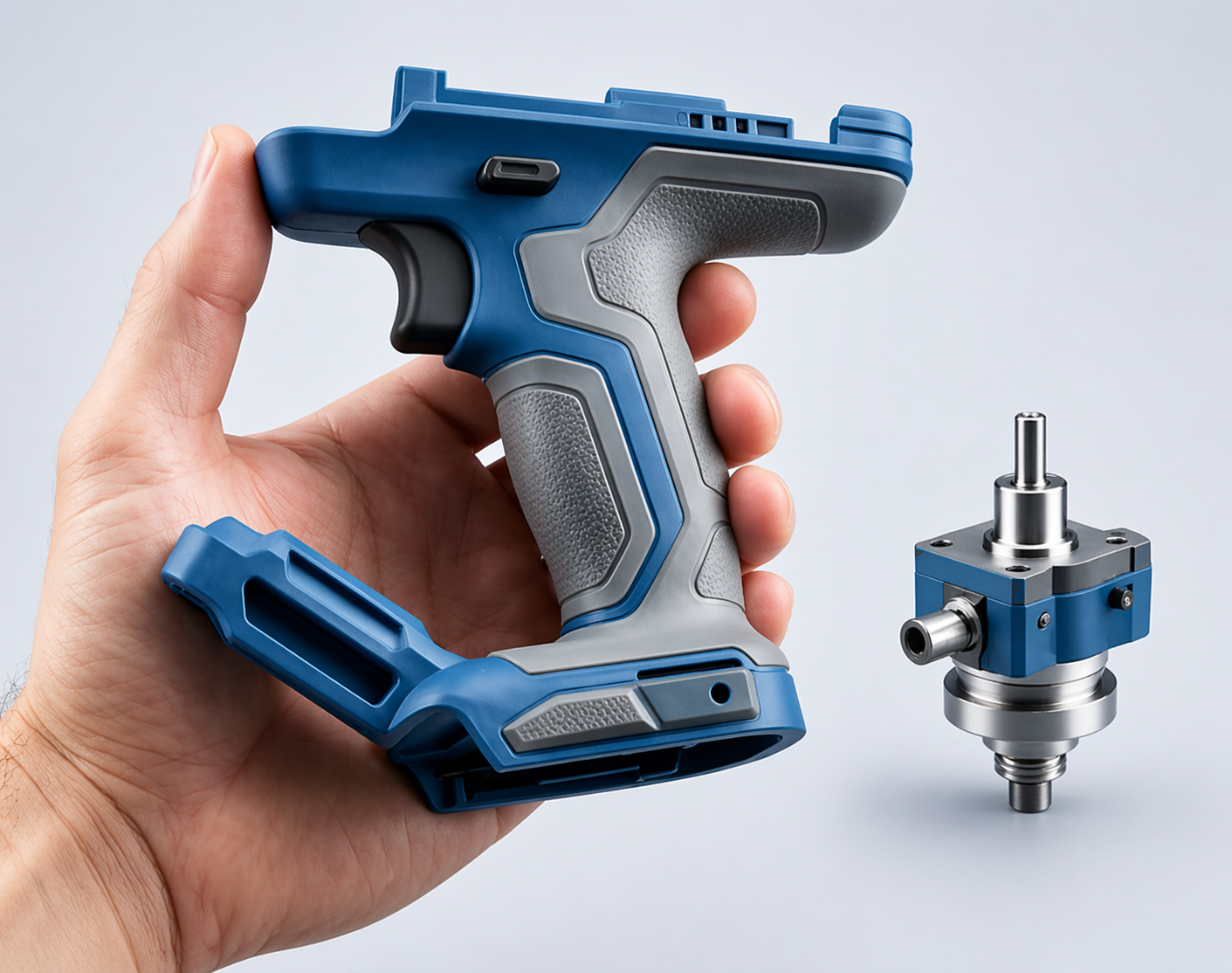

Molding a soft elastomer (like TPU/TPE) over a rigid plastic substrate for grip, sealing, or aesthetics.
Typical Apps: Power Tools, Medical Devices, Wearables
We process thousands of specific resin grades, including glass-filled and UL94 V-0 flame retardant plastics.
| Parameter | Standard | Tight |
|---|---|---|
| Dimensional Tolerance | ±0.1 mm | ±0.05 mm |
| Draft Angles Required | 1° – 2° | 0.5° (depends on finish) |
| Surface Finishes | SPI, VDI, Mold-Tech | Mirror Polish (SPI A-1) |
You do. Once paid for, the tooling is your exclusive property. We will maintain, clean, and store the mold for free at our facility for its entire productive life.
Aluminum prototype molds last ~10,000 shots. P20 steel molds last ~100,000 shots. Hardened tool steel (H13 or S136) can last 1,000,000+ shots.
Yes. We can machine aluminum tools to provide production-grade parts in as little as 10–15 days for validation.
Yes, we provide custom color matching using masterbatch colorants, and we will send you color plaques for approval before mass production.
Electronics (enclosures, connectors), Automotive (interior trims, under-hood), Medical (housings, non-invasive disposables), and Premium Consumer Products.
Yes. Our DFM reports cover draft angles, wall thickness consistency, gate locations, ejector pin marks, and sink mark analysis.
